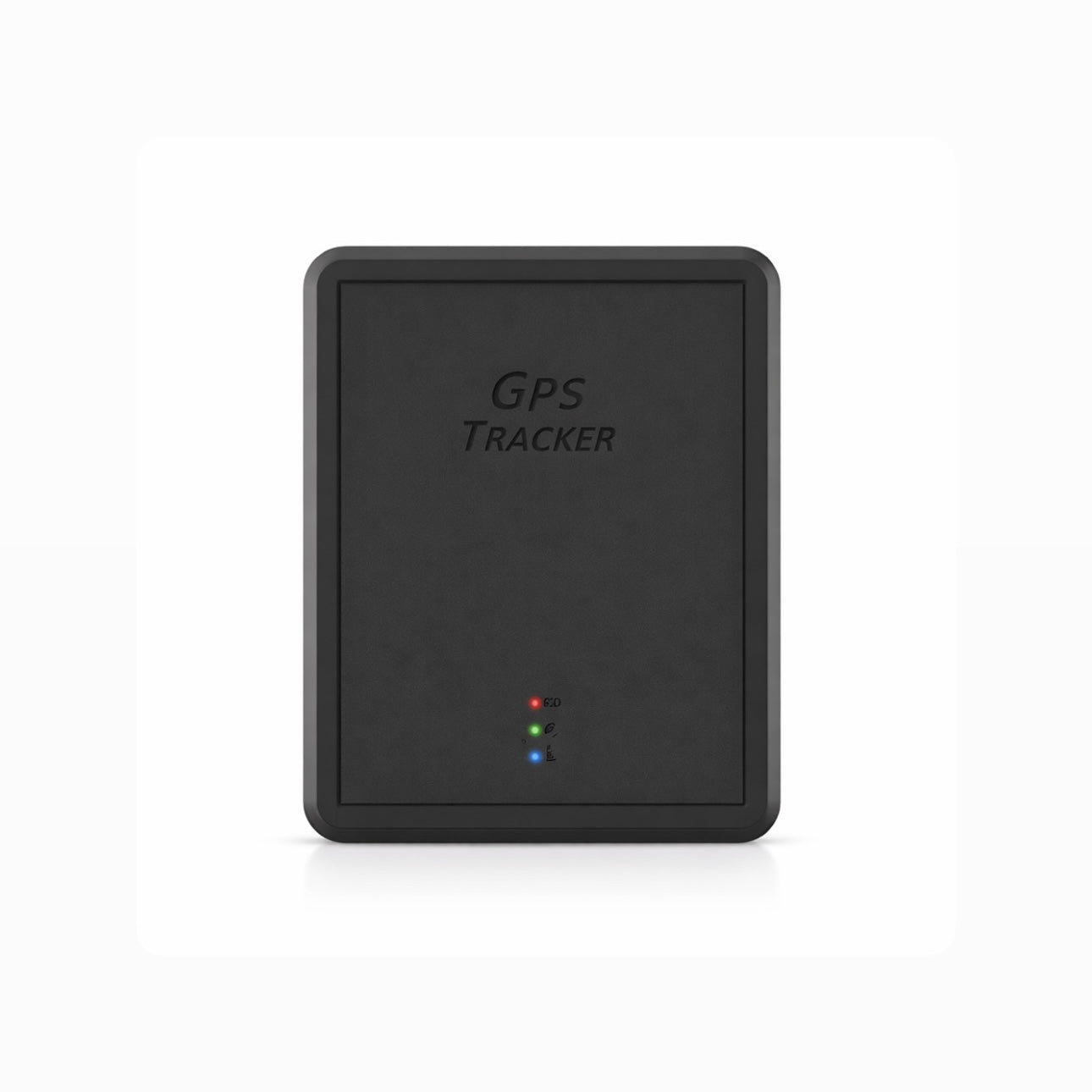

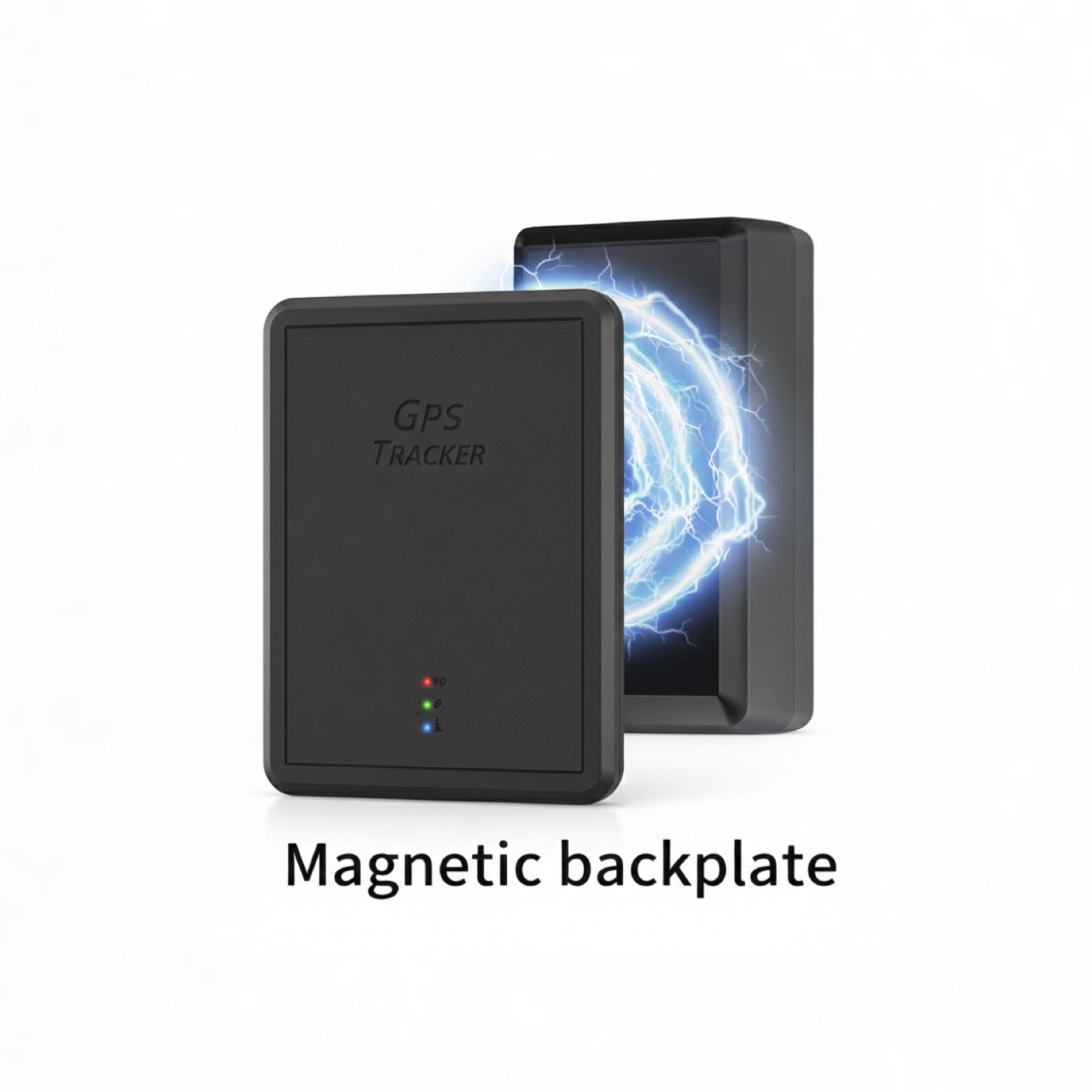

AutoGuard P13 - Magnetic GPS Multi-Platform Tracker

The P13 series represents the pinnacle of long-term asset tracking, featuring a massive battery capacity and advanced 4G global connectivity. Engineered for heavy-duty applications like trucking and long-haul logistics, this locator ensures your cargo stays visible across borders and remote territories.

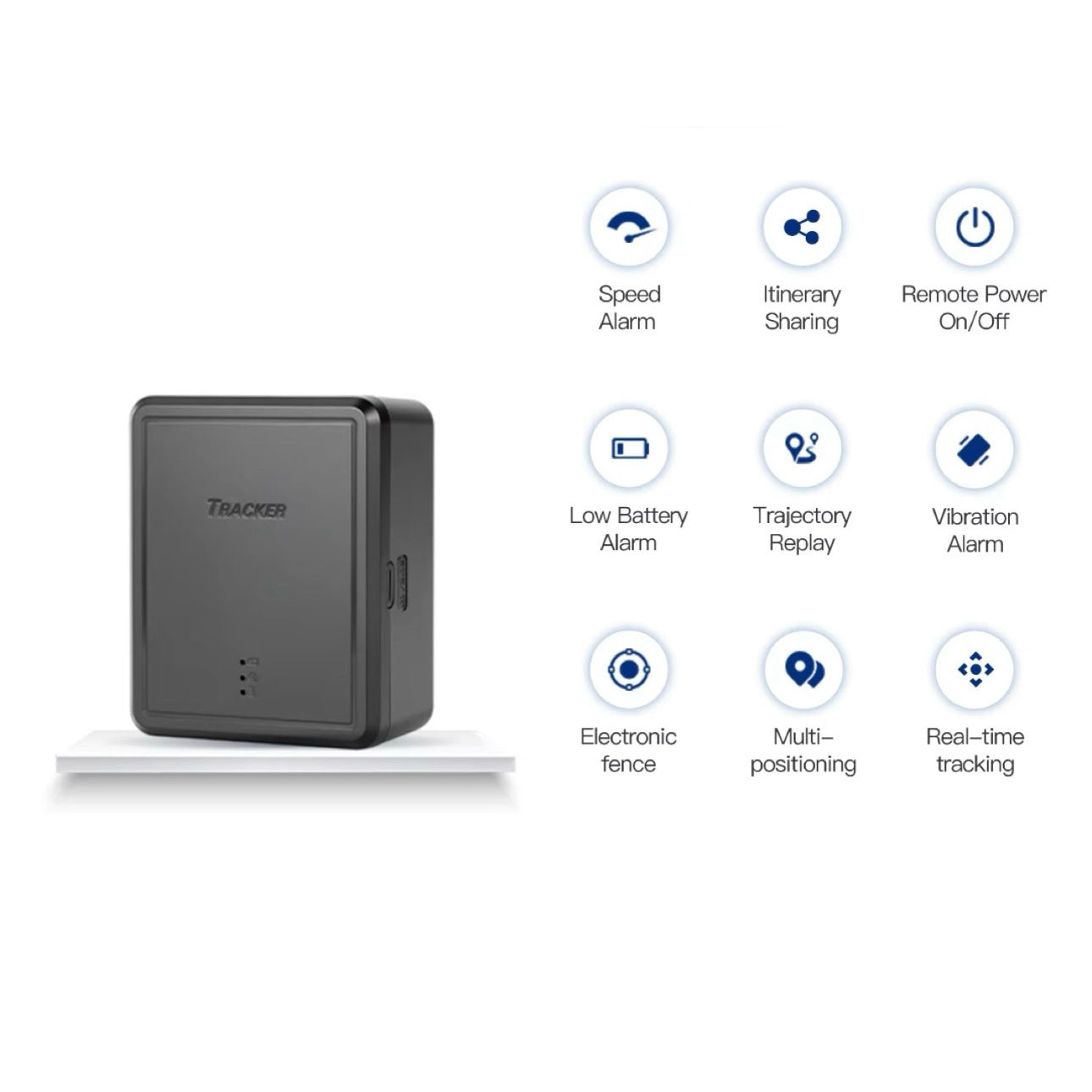

Key Features:

• Specifically designed for long-term tracking with an ultra-long battery life cycle, ideal for car rentals and fixed asset management.

• Features GPS, Beidou (BD), WiFi, and LBS technology to ensure fast and accurate location reporting even in obstructed areas.

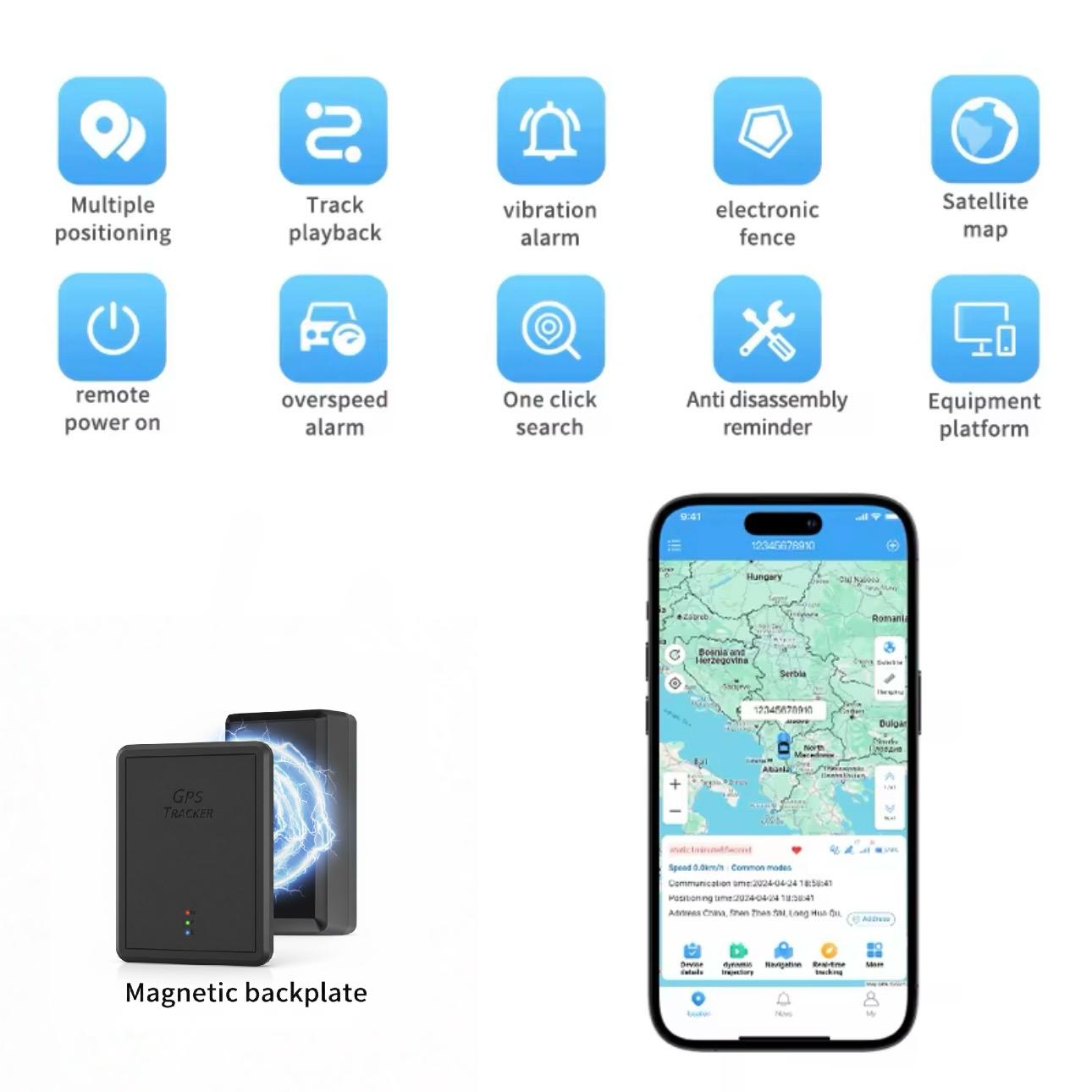

• The system automatically archives historical tracking data for the past six months, accessible for real-time playback through the app.

• Features remote power on/off capabilities, giving you total control over the device from your smartphone.

• Equipped with vibration sensors, overspeed reminders, and a tamper alarm that triggers if the equipment is removed.

• Set up electronic fences and receive instant notifications when the vehicle enters or leaves designated areas.

Key Functional Specifications:

• Positioning: Supports "Real-time positioning" with intelligent upload location logic.

• Safety & Security: Includes an equipment removal alarm (tamper), vehicle abnormal vibration alarm, and overspeed monitoring.

• Data & Monitoring: Supports multi-platform queries via SMS, phone notifications, web platforms, and mobile apps.

• Power Management: Features a built-in battery display to check device power levels at any time via the app.

Technical Manual Summary

• Core Chipsets: Features the AT6558R GPS chip; the P13R utilizes the ML307R-DL 4G module, while the P13-7670SA uses the 7670SA module.

• Extended Network Support (7670SA): Includes LTE-FDD bands B1/B2/B3/B4/B5/B7/B8/B28/B66 and GSM 850/900/1800/1900MHz.

• Physical Specifications:

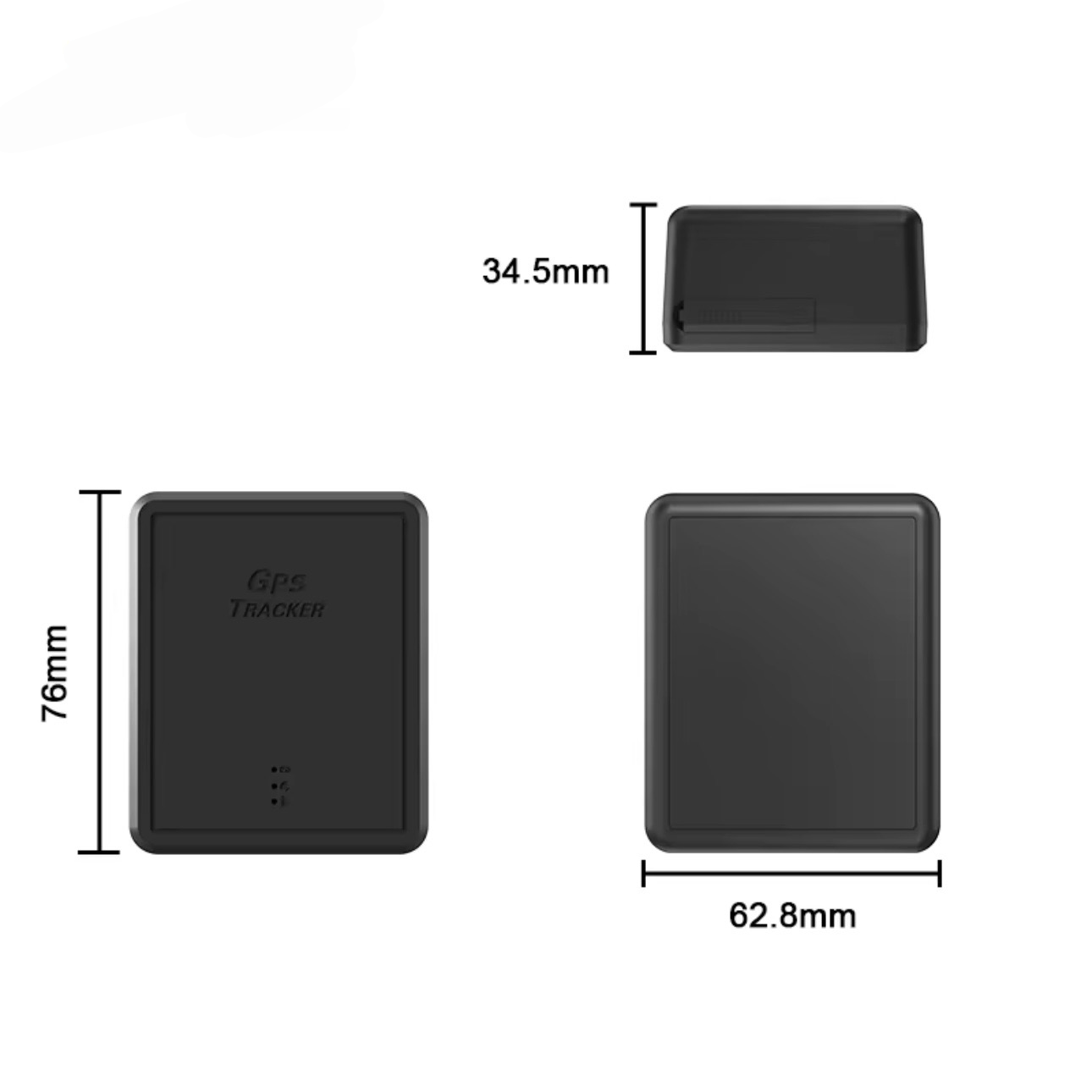

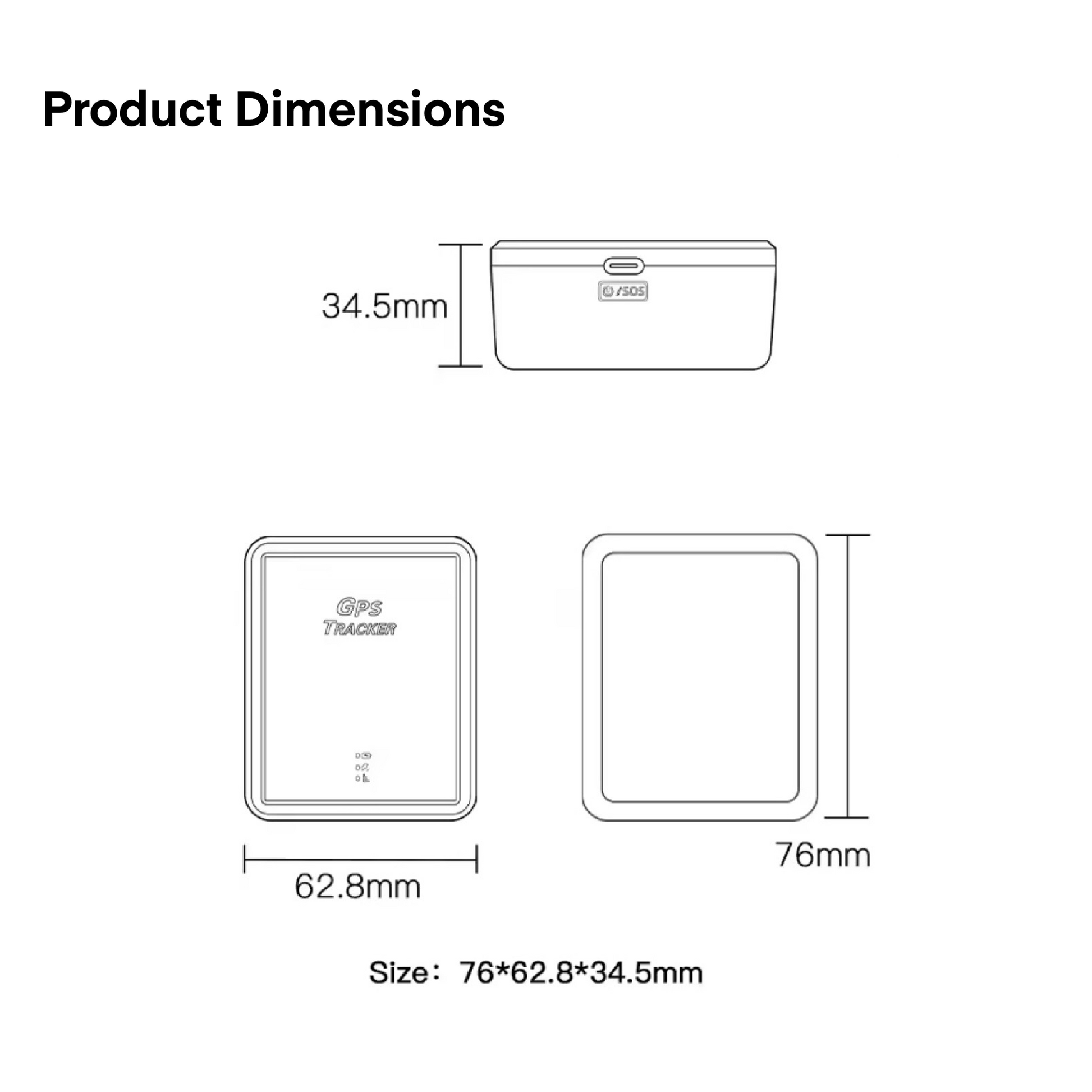

• Dimensions: 76mm x 62.8mm x 34.5mm.

• Net Weight: 229.32g.

• Interface: Modern Type-C interface for charging and a Nano Push-style SIM card slot.

• Operational Modes: Supports real-time positioning, overspeed alerts, and historical trajectory playback.
